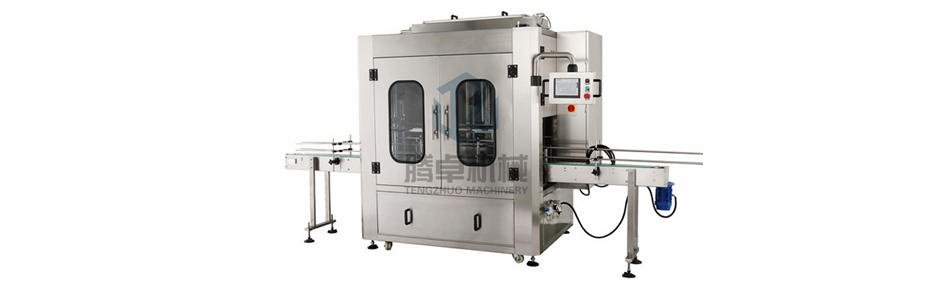

I. Introduction of equipment
This series filling machine adopts negative pressure equal liquid level filling mode, automatic control of entering, locating, filling and discharging bottles, negative pressure filling makes the material above the liquid level be pumped back, and the liquid level of the products is kept at the same liquid level, which is especially suitable for the filling of some transparent glass bottles such as alcoholic beverages.

02, equipment characteristics
1. The machine adopts Siemens servo system to cooperate with precision mechanical system; electrical components adopt Siemens PLC, man-machine, servo motor, etc., filling capacity can be set quickly in man-machine;

2. The seals are made of imported PTFE sealing rings, which can withstand strong acid and alkali, and can be used in high temperature environment. It meets the requirements of physiological safety and is suitable for food and drug sealing, it does not contain odor and taste, suitable for food contact;

3. All contact parts with materials are made of imported food grade stainless steel, processed by CNC machine tools; filling cylinder block using SUS316 # material, unique filling valve design, effectively avoided Leakage of liquids

4. Introduce the advanced design concept of clamp type in Europe to realize quick disassembly, cleaning and maintenance without any special tools and meet the requirements of GMP.
5. lateral bottle mouth positioning system further ensures bottle mouth positioning.
6. fault automatic inquiry and display, material super liquid alarm function.
7. The filling capacity of the cylinder block can be adjusted once (coarse adjustment), and each cylinder block can be adjusted individually (fine adjustment) to accurately adjust the required filling capacity.

8.Moving up and down filling of workstation can effectively prevent foam from forming.Advanced man-machine interface operation can steplessly adjust production speed.

03, technical parameters
Production speed is 20-60 bottles / minute (depending on filling material and filling volume).
Filling range 3ml-5000ml
Filling accuracy is + 1%.
Product size height: 30-200 mm diameter: 40-900 mm
The size of the machine is L1250 * W1110 * H2200 mm
Using power 220V 50Hz 2500W
Use air source 0.6Mpa 40L/min

(above is standard type technical parameters, other special requirements and functions, can be customized!)
